Network:
 INMARSAT
|
BGAN T&T Explorer 727
TT-00-3722A
Quick Overview:
The Thrane Explorer 727 Vehicular BGAN provides voice and broadband communications for your vehicle. Thrane EXPLORER 727 gives you access to Internet,E-mail,Fax, voice calls, video conferencing and streaming, and corporate servers. Simultaneous voice and 432 kbps data on the go.
Simultaneous voice and 432 kbps data on the go.
Voice and broadband communications for your vehicle. Whether you are off-roading through the desert, driving down cobblestone streets, or cruising the highway, Explorer 727 ensures that you are connected to the rest of the world via a tracking antenna mounted on the roof of your car. Thrane EXPLORER 727 gives you access to Internet,E-mail,Fax, voice calls, video conferencing and streaming, and corporate servers. Setting up your EXPLORER 527 is quick and easy. The system automatically finds the BGAN network after power-on. Just plug in a phone fax or laptop - and you are online. The basic system consists of two units-a tranceiver and an antenna.
Product Features
-Simultaneous voice and data communications over BGAN
-High-speed data transfer up to 432 kbps
-Seamless global coverage
-Support for streaming IP at 32, 64, 128 and 256 kbps
-Standard LAN, USB, Bluetooth, and phone/fax interfaces
-Secure voice/data connections
-Easy system setup and operation
-Lightweight, splash and dust proof design
-Robust, reliable and durable design
-Plug and play capability
 BROCHURE |
 MANUALS |
 QUICK START GUIDE |
 FAQ |
 DRIVER & SOFTWARE |
 FIRMWARE & UPDATES |
 SUPPORT |
 ACCESSORIES |

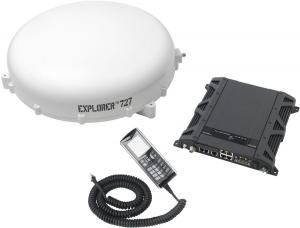

Included in the Package:
Explorer 727 incl.

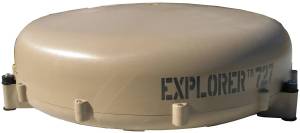

Fully integrated electronic tracking antenna, colour : Desert
Tan

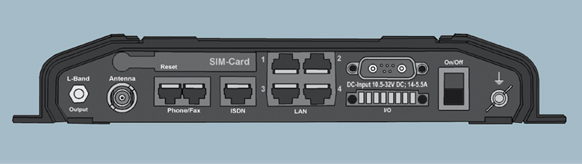

EXPLORER Land vehicular transceiver
Thrane IP handset w/ cradle & coild cable
Ethernet cable between transceiver & cradle (5m)
Standard ethernet cable (5m)
Getting started kit - Quick start 2 x cd (Launch pad & T&T)
External mounting kit
12/24VDC input cable (6m)
Antenna cables, coax w/TNC connector (2.7m & 8m)
Antenna mounting kit (Fixed/Rail)
Specifications:
-Terminal Size: 19?? 1U rack-mountable casing, approx. 3kg/7lbs
-DC input, 10-32V, 70W
-Voice and data, Rx/Tx: 464kbps/448kbps (simultaneously)
-Control buttons, MMI display and LEDs
-System configuration via MMI, or by PC using the built-in web-server
-2-wire phone/fax (support of 1 phone from front or back panel)
-LAN and various I/O functions
-USB service interface
-Operating temperature:-25°C to +55°C/-13°F to +131°F
-Antenna:Fixed or magnetic mounting
-Operating temperature -25°C to +55°C/-13°F to +131°F
-Waterproof outdoor housing
-Antenna weight: Approx. 4kg/8lbs
|
